KJ3002X1-BA1 EMERSON Input Module 8 Channel 4-20 MA Hart Bus Power 12 V

• KJ3002X1-BA1 EMERSON Input Module 8 Channel 4-20 MA Hart Bus Power 12 V

Overview

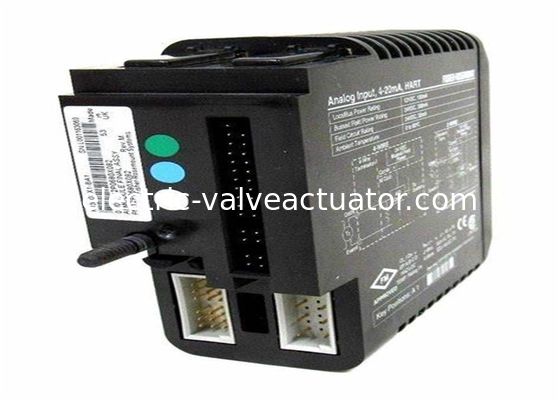

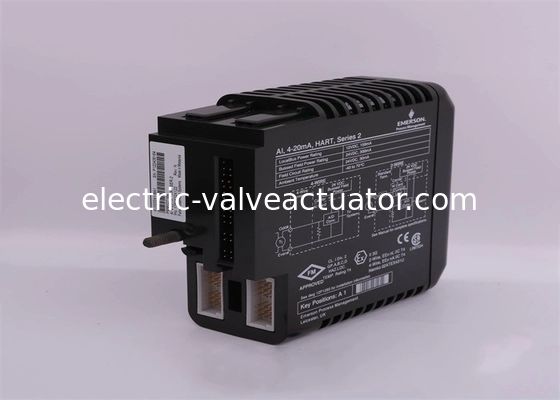

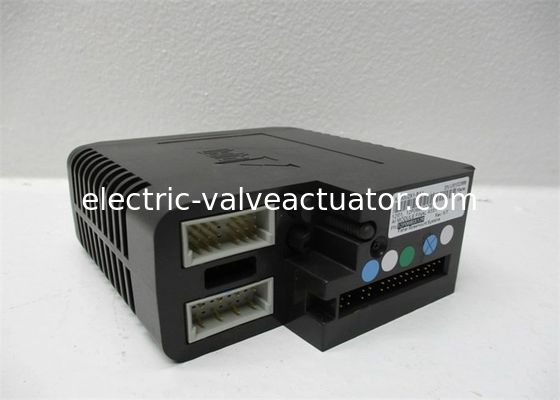

The Emerson KJ3002X1-BA1 12P06801X122 is a specialized analog input module engineered for integration with Emerson’s DeltaV automation system. It efficiently receives and processes analog signals from industrial devices such as sensors, transducers, and transmitters.

Key Features and Specifications
2-Wire Analog Input (AI): Utilizes a 2-wire design that combines power supply and signal transmission through a single pair of wires, simplifying installation and minimizing wiring complexity.
8-Channel Capacity: Simultaneously handles up to eight analog input channels, enabling the integration of multiple sensors or transmitters into a single module.
4-20 mA Signal Compatibility: Optimized for standard 4-20 mA analog signals, which are widely used in industrial process control applications.
HART Protocol Support: Compatible with the HART protocol, facilitating digital communication with HART-enabled devices. This supports advanced functionalities like device configuration and diagnostic monitoring.
Seamless DeltaV Integration: Designed to integrate smoothly with the DeltaV system, ensuring compatibility with other DeltaV components and enabling comprehensive process control capabilities.
High Precision: Delivers accurate conversion of analog signals to digital values, guaranteeing reliable process measurements.
Durable Build: Constructed to endure harsh industrial environments, including exposure to vibration, extreme temperatures, and electromagnetic interference.

Applications
Process Monitoring: Tracks key process variables such as temperature, pressure, flow rate, and level in industrial facilities.
Control Systems: Supplies feedback signals for automated process control, integrating into control loops for efficient operation.
Data Acquisition: Gathers process data to support analysis and reporting in data acquisition systems.
SCADA Systems: Used in Supervisory Control and Data Acquisition (SCADA) systems to monitor and manage distributed industrial processes.

Technical Specifications

• Manufacturer: Emerson
• Model: KJ3002X1-BA1 12P06801X122
• Type: 2-Wire Analog Input (AI) with 8 channels
• Signal Type: 4-20 mA
• HART Compatibility: Typically supported
• Power Supply: Derived from the DeltaV system
• Dimensions: Varies by specific model
• Mounting: DIN rail or panel mount
• Certifications: Includes multiple safety and compliance certifications (e.g., CE, UL)
