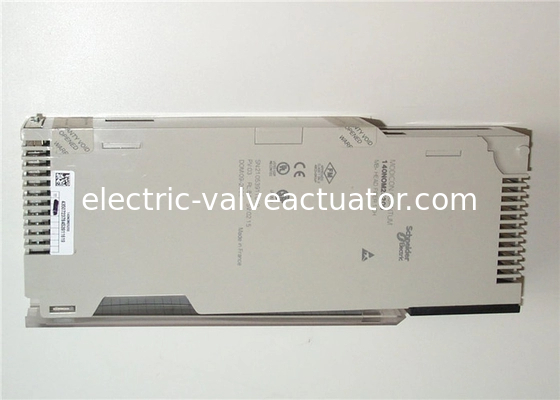

SCHNEIDER 140NOC78100 Programmable Automation Controller Communicating Module

Name: SCHNEIDER 140NOC78100 Programmable Automation Controller Communicating Module
Brand: Hontai Machinery and equipment (HK) Co. ltd
SKU: 140NOC78100
Price: 210.00 USD
Availability: InStock

브랜드 이름:	Schneider
모델 번호:	140NOC78100
MOQ:	1
가격:	협상 가능
지불 조건:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
공급 능력:	In Stock

자세한 정보

제품 설명

자세한 정보

Place of Origin:

인증:

Packaging Details:

New Original Box

Supply Ability:

In Stock

제품 설명

Detailed Product Description

Brand:	Schneider	Model:	140NOC78100
Palce Of Origin:	FR	Type:	Processor/Controller
Module Format:	Standard	Series:	Communications
Exchange Mode:	Full Duplex	Marking:	CE
Highlight:	ethernet plc controllers , industrial automation using plc

PLC Programmable Logic Controller SCHNEIDER 140NOC78100 COMMUNICATING MOUDLE

This system word counts the number of forced I/O module bits. This word is incremented for every
forcing, and decremented for every unforcing.

This system word gives information on the size of the unrestricted memory area for %M. This system word is not available for the standard Quantum CPU

This system word gives information on the size of the unrestricted memory area for %MW. This system word is not available for the standard Quantum CPU

Specifications

Manufacturer:	Modicon Quantum
Series:	Communications
Weight:	Ask
Product or component type:	DIO head-end adaptor
Number of port:	1 Modbus Plus fiber optic single copper
	1 Modbus RS232 twisted pair
Transmission rate:	1 Mbit/s
Electrical connection:	1 connector RJ45
	2 connectors TX/RX
I/O words:	30 I/32 O
Checks:	RAM address
	Processor
	Checksum
	RAM
Power dissipation in W:	4 W
Pulse width distortion/jitter:	>= 5 ns
Wavelength:	820 nm
Power loss budget:	11 dB 62.5/125 µm
	16.5 dB 100/140 µm
	6.5 dB 50/125 µm
Optical transmission:	-16...-9 dBm 100/140 µm
	-19.8...-12.8 dBm 50/125 µm
	-3.5...110.5 dBm 62.5/125 µm
Rise/Fall time:	20 ns
Dynamic range:	20 dB
Detected silence:	-36 dBm
Sensitivity scale:	> 30 dBm
Bus current requirement:	750 mA

OTHER SUPERIOR PRODUCTS

Yasakawa Motor, Driver SG-	Mitsubishi Motor HC-,HA-
Westinghouse Modules 1C-,5X-	Emerson VE-,KJ-
Honeywell TC-,TK-	GE Modules IC -
Fanuc motor A0-	Yokogawa transmitter EJA-

Similar Products

40NOE77101

140NOE77101C

140NOE77111

140NOE77111C

140NOM21100

140NOM21100C

140NOM21200

140NOM21200C

140NOM25200

140NOM25200C

140NWM10000

140EIA92100

140EIA92100C

140NOA62200

140ESI06210

140ESI06210C

490NAE91100

467NHP81100

490NAD91103

490NAD91104

490NAD91105

These words are updated by the system, and can also be reset using %S80.
%SW80: Number of Modbus messages sent by the system as client on all communication
ports except USB and Ethernet copro.
NOTE: Modbus messages sent by the system as Master are not counted in this word.
%SW81: Number of Modbus messages received by the system as client on all communication ports except USB and Ethernet copro.
NOTE: Modbus messages received as response,to the requests sent by the system, as Master, are not counted in this word.

This word is used to set a maximum number of requests which can be processed by the PLC per
master task cycle.
When the CPU is the server: This number of requests must be between 2 (minimum) and N+4
(maximum).
N: number differs depending on the model.
When the CPU is the client:
N: number differs depending on the model.The value 0 does not work. If a value that is
outside of the range is entered, it is the value Nthat is taken into account.
See also chapter "System Objects" (see Unity Pro, Program Languages and Structure, Reference Manual ) in the Unity Pro ProgramLanguages and Structure Reference Manual.
