Fluke 721 Series Precision Pressure Calibrator | Industrial Pressure Calibration Instrument

자세한 정보

원래 장소:

OEM

낮은 압력 범위:

-14psi ~ +16psi

압력 범위:

-14psi ~ +16psi

작동 온도:

-10°C ~ +50°C

보관 온도:

-20 +60 'Ｃ에 대한 'Ｃ

전력 요구 사항:

6.0V DC

치수:

20 x 11 x 5.8cm(7.9 x 4.3 x 2.3인치)

무게:

3,539kg(1파운드 3온스)

포장 세부 사항:

새로운 오리지널 박스

제품 설명

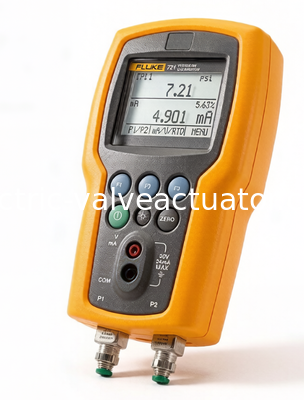

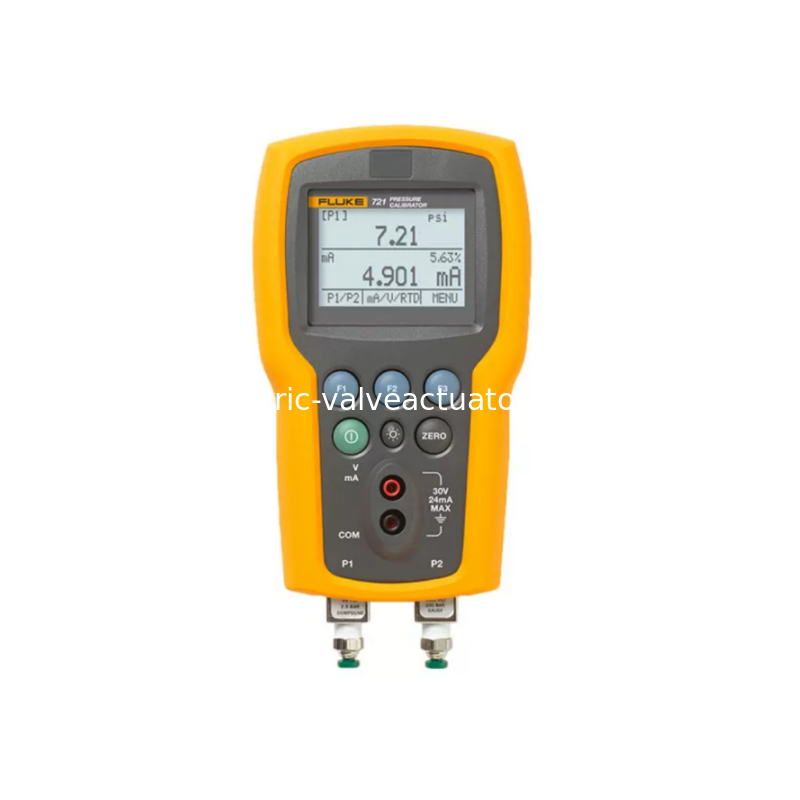

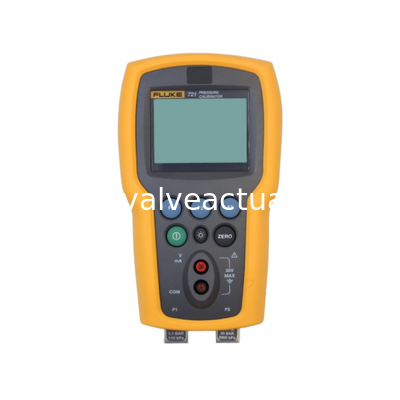

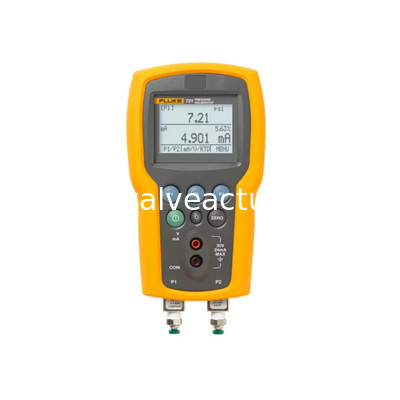

Fluke 721 Series Precision Pressure Calibrator

Industrial-grade pressure calibration instrument designed for precision measurement and calibration applications in demanding environments.

General Technical Specifications

Instrument Settings	Recall Last Power-On Setup
Operating Temperature	-10 °C to +50 °C
Storage Temperature (without batteries)	-20 °C to +60 °C
Altitude	2,000 m
Protection Rating	IP-40
Power Requirements	6.0 V DC
Battery Life	>35 hours (for primary use)
Number of Batteries	4 Standard AA Batteries
Dimensions (H x W x D)	7.9 x 4.3 x 2.3 in (20 x 11 x 5.8 cm)
Weight	539 g (1 lb 3 oz)
Connector/Port Pressure	Two, 1/8 in NPT, 700P Series Pressure Module: RTD Probe

Electrical and Temperature Measurements (1 Year)

Functions	Range	Resolution	Accuracy
mA Measurement	0 to 24 mA	0.001 mA	Reading ±0.015% ±0.002mA
V DC Measurement	0 to 30 V DC	0.001 V	Reading ±0.015% ±0.002 V
Temperature Measurement (RTD/Ohms)¹	-40 °C to 150 °C (-40 °F to 302 °F)	0.01 °C, 0.01 °F	Reading ±0.015% ±0.02 ohms ±0.1 °C (±0.2 °F)
Loop Power Supply	24 V	N/A	24 mA @ 24 V
