HY96 2500A 13.2V Heavy Duty Output Reactor | Pure Copper Foil Winding for VFD Harmonics Filtering

브랜드 이름:	OEM
MOQ:	1
가격:	협상 가능

자세한 정보

제품 설명

자세한 정보

원래 장소:

중국

리액턴스 계수:

0.01

정격주파수:

40HZ

단락 폐쇄 전류:

피크 내전류:

1.3A

정격전류:

20A

작동 전압:

450V

절연 전압:

3000V

총 전력 소비:

주회로 전압:

440V

포장 세부 사항:

새로운 원본 상자

제품 설명

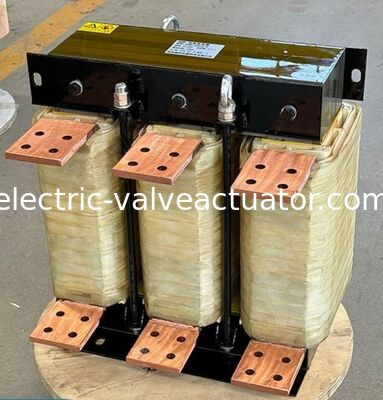

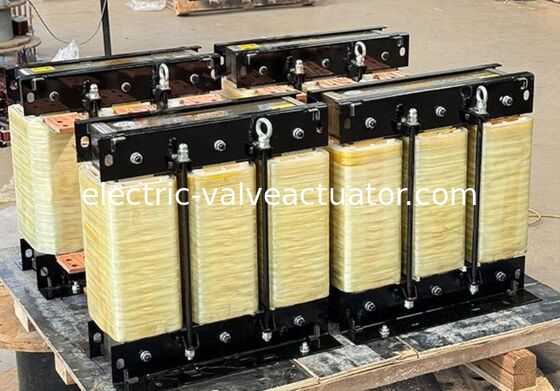

HY96 2500A 13.2V Heavy Duty Output Reactor | Pure Copper Foil Winding for VFD Harmonics Filtering

The HY96 Heavy Duty Output Reactor is a high-performance power component engineered for demanding variable frequency drive (VFD) applications, featuring a 2500A current rating and 13.2V voltage rating. Designed to optimize power quality, protect equipment, and ensure stable operation, it stands out with its pure copper foil winding—delivering superior conductivity, heat dissipation, and long-term reliability for industrial VFD harmonic filtering and motor protection.

At the core of its performance is the pure copper foil winding, a key advantage over traditional windings. With a conductivity of approximately 5.96×10⁷ S/m, pure copper minimizes electrical resistance, reducing energy loss and improving overall efficiency. Its excellent thermal conductivity (401 W/(m·K)) enables rapid heat dissipation, preventing overheating even during prolonged heavy-duty operation and extending the reactor’s service life. Additionally, copper foil’s high mechanical strength and ductility ensure stable winding structure, mitigating skin effect and eddy current losses common in high-frequency VFD applications.

As a dedicated VFD output reactor, it plays a critical role in filtering harmonic interference generated by VFDs. VFDs produce non-sinusoidal current pulses during AC-DC-AC conversion, leading to harmonic distortion that damages motor insulation, increases noise, and reduces system efficiency. The HY96 effectively suppresses these harmonics, attenuating frequencies across 100Hz–50kHz with exceptional filtering performance, while slowing voltage rise rate (dv/dt) to protect motor windings and reduce bearing current corrosion.

Built for heavy-duty industrial use, the HY96 boasts a rugged design with a low-loss silicon steel core and vacuum impregnation process, ensuring low temperature rise (≤65K) and low noise (≤55dB). It handles continuous high-current operation, with excellent overload capacity to adapt to sudden load changes, making it ideal for applications with long motor leads where it suppresses capacitive charging current and reduces voltage reflection waves.

Widely applicable in metallurgical rolling mills, oil rigs, pumps, conveyors, and other high-power industrial equipment, the HY96 enhances system stability, minimizes downtime, and extends the service life of VFDs and motors. Backed by reliable performance, easy installation, and low maintenance requirements, it is the trusted choice for industrial environments demanding robust harmonic filtering and heavy-duty power control.
