Zhong He SZ-6B Magnetic Induction Velocity Sensor | Vibration Speed Transducer for Industrial Monitoring

Name: Zhong He SZ-6B Magnetic Induction Velocity Sensor | Vibration Speed Transducer for Industrial Monitoring
Brand: OUTER ELECTRONIC TECHNOLOGY (HK) LIMITED
SKU: SZ-6B
Price: 1.00 USD
Availability: InStock

브랜드 이름:	Zhong He
모델 번호:	SZ-6B
MOQ:	1
가격:	협상 가능

자세한 정보

제품 설명

자세한 정보

원래 장소:

중국

감지 범위:

(4 ～ 1000)Hz

감지 범위:

4~1000Hz

포장 세부 사항:

새로운 원본 상자

제품 설명

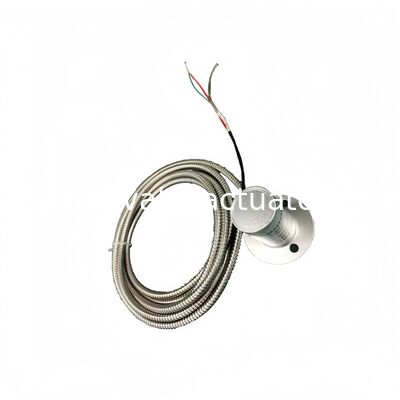

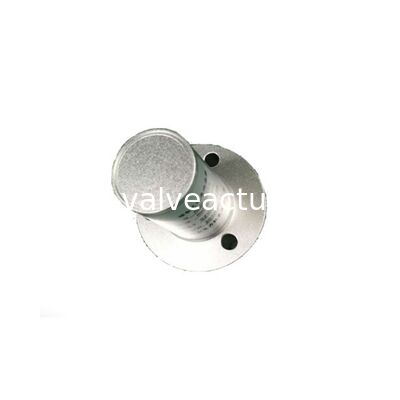

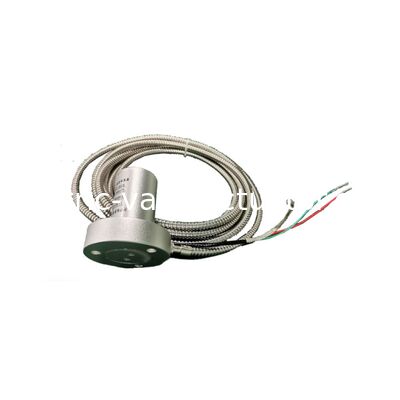

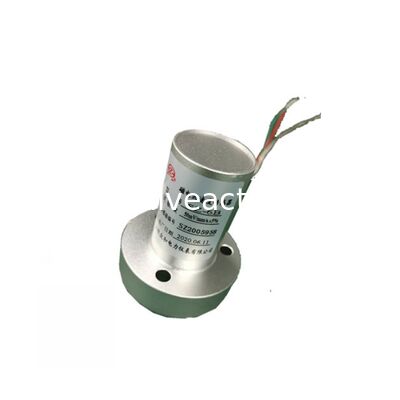

Zhong He SZ-6B Magnetic Induction Velocity Sensor | Vibration Speed Transducer for Industrial Monitoring

The Zhong He SZ-6B is a high-reliability magnetic induction velocity sensor specifically engineered as a vibration speed transducer for industrial machinery condition monitoring. Based on Faraday's electromagnetic induction principle, it converts mechanical vibration velocity into proportional electrical signals, featuring self-generating operation and exceptional stability for harsh industrial environments.

Operating Principle

As a passive sensor, it requires no external power supply, simplifying installation and reducing maintenance costs. Its core structure consists of a permanent magnet and a moving coil; when vibration occurs, the coil cuts magnetic lines to generate an induction voltage, which is directly proportional to vibration velocity, ensuring accurate and real-time monitoring data.

Technical Specifications

Parameter	Specification
Sensitivity	50mV/mm/s (±5% error)
Frequency Response	10~500Hz
Maximum Acceleration	10g peak
Minimum Vibration Detection	0.01mm
Amplitude Range	<2000μm (p-p)
Operating Temperature	-30~120℃
Relative Humidity	≤95% (non-condensing)
Mounting	M10*1.5 threaded design

Key Features

Passive operation - no external power required
Self-generating electromagnetic induction principle
Rugged housing resistant to corrosion and magnetic interference
Vertical or horizontal installation capability
No friction components for extended service life
Easy maintenance and installation

Applications

Widely applied in power, petrochemical, metallurgy, and machinery industries. Ideal for monitoring turbines, compressors, fans, and pumps. Seamlessly integrates with CZJ-B3/B4 vibration monitors, DCS, and PLC systems, providing early fault detection to prevent equipment damage and ensure continuous, efficient industrial operation.
