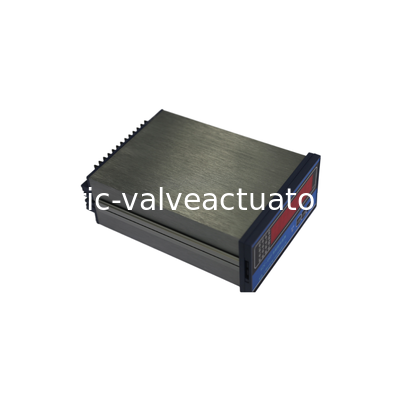

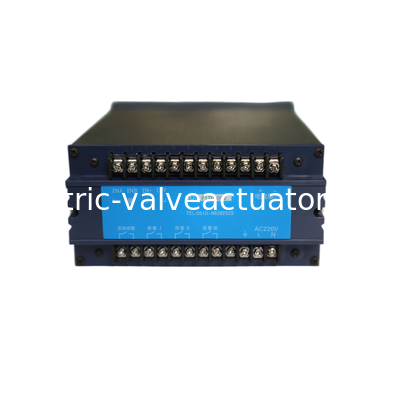

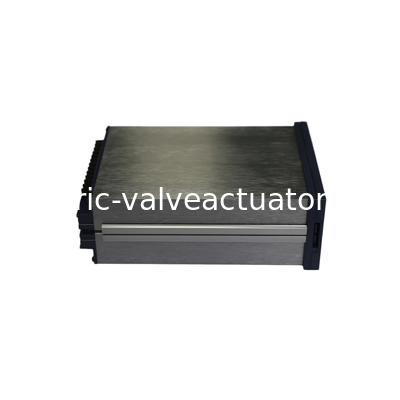

Zhong he SZC-O4F Intelligent Tachometer – Precisely Measuring Reverse Rotation and Controlling Alarms

Name: Zhong he SZC-O4F Intelligent Tachometer – Precisely Measuring Reverse Rotation and Controlling Alarms
Brand: OUTER ELECTRONIC TECHNOLOGY (HK) LIMITED
SKU: SZC-O4F
Price: 1.00 USD
Availability: InStock

브랜드 이름:	Zhong he
모델 번호:	SZC-O4F
MOQ:	1
가격:	협상 가능

자세한 정보

제품 설명

자세한 정보

원래 장소:

중국

포장 세부 사항:

새로운 원본 상자

강조하다:

Zhong he intelligent tachometer with reverse rotation

electric valve actuator tachometer with alarm control

SZC-O4F tachometer for precise rotation measurement

제품 설명

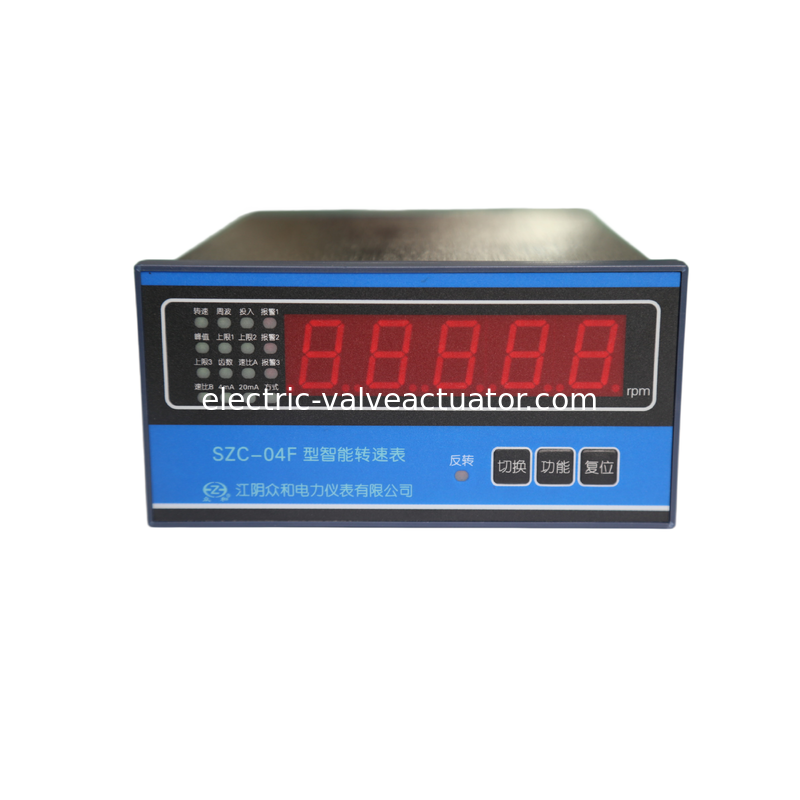

Zhong he SZC-O4F Intelligent Tachometer

Precisely measuring reverse rotation and controlling alarms for industrial applications

Product Overview

The SZC-04 series intelligent tachometer is a digital display instrument featuring intelligent design with high accuracy, stable performance, strong anti-interference capability, high reliability, and simple operation. Users can configure parameters such as tooth count, transmission coefficient, and alarm values on-site.

Available Models

SZC-04
SZC-04B
SZC-04BG
SZC-04F
SZC-04FG

Suitable for measuring the speed of steam turbines, water pumps, and fans. SZC-04F and SZC-04FG models can monitor reverse speed (requires connection to two sensor signals).

The instrument is pre-configured according to order requirements and can be used directly. Any parameter modifications should be performed by professionals following the instruction manual.

Main Functions

Measures and displays rotational speed or frequency
Measuring peak value (maximum value) memory function
Selectable frequency measurement and frequency measurement modes
Tooth count and transmission coefficient settable from 1~200
Alarm switch output with configurable alarm values
4~20mA analog output corresponding to measurement range
Retains set parameters during power outages
Detects forward or reverse rotation of transmitter disc
12VDC power supply for sensors (SZC-04F/SZC-04FG models)

Technical Specifications

Measuring Range	1~15000 rpm
Measuring Accuracy	1 digit ± 1 rpm
Input Signal (SZC-04/SZC-04B/SZC-04BG)	50mV~30V pulse or sine wave signal
Input Signal (SZC-04F/SZC-04FG)	High level: 5V~30V, Low level: ≤0.7V pulse signal
Display Method	5-digit LED digital display
Alarm Output	Relay switch output, contact capacity AC250V/2A DC28V/2A
Current Output	DC 4~20mA, accuracy ±1.0% (at 25℃), maximum load 500Ω

Power Supply Options

(198~242) VAC, 50Hz±5% (linear power supply)
(20~26) VDC
(85~265) VAC (switching power supply)

Wall-mounted meters have two types of power supplies: linear power supply and switching power supply.

Dimensions

SZC-04	1608085mm (Opening: 152*76mm)
SZC-04B/SZC-04F	16080225mm (Opening: 152*76mm)
SZC-04BG/SZC-04FG	19029092mm (Installation: 170*272mm)

Operating Environment

Temperature: 0~50℃
Storage Temperature: -10~60℃
Relative Humidity: 20~90% (non-condensing)
Environment free from corrosive substances and strong magnetic fields
