제품 세부 정보

집 상품

GE FANUC SERIES 90-30 SUPPLY Digital I/O MODULE 120 volts AC IC693MDL240

Name: GE FANUC SERIES 90-30 SUPPLY Digital I/O MODULE 120 volts AC IC693MDL240
Brand: Hontai Machinery and equipment (HK) Co. ltd
SKU: IC693MDL240
Price: 210.00 USD
Availability: InStock

브랜드 이름:	GE
모델 번호:	IC693MDL240
MOQ:	1
가격:	Negotiations

자세한 정보

제품 설명

자세한 정보

원래 장소:

미국

전원 공급 장치:

120/240 VAC, 125 VDC

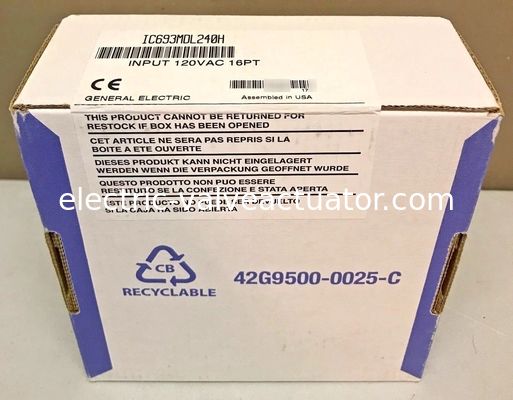

포장 세부 사항:

새로운 원본 상자

강조하다:

GE Fanuc Series 90-30 digital I/O module

120V AC digital I/O module

IC693MDL240 PLC module with warranty

제품 설명

GE FANUC SERIES 90-30 SUPPLY Digital I/O MODULE 120 volts AC IC693MDL240

Product Attributes

Attribute	Value
Power Supply	120/240 VAC, 125 VDC

Quick Details

Type of Device: 120 Volt AC Input, 16 Point
Rated Voltage: 120 volts AC
Input Voltage Range: 0 to 132 volts AC, 50/60 Hz
Inputs per Module: 16 (one group with a single common)
Isolation: 1500 volts RMS between field side and logic side
Input Current: 12 mA (typical) at rated voltage
On-state Voltage: 74 to 132 volts AC
Off-state Voltage: 0 to 20 volts AC

Product Summary

Type of Device: 120 Volt AC Input, 16 Point
Rated Voltage: 120 volts AC
Input Voltage Range: 0 to 132 volts AC, 50/60 Hz
Inputs per Module: 16 (one group with a single common)
Input Current: 12 mA (typical) at rated voltage
Description: Input Module | Series 90-30
On-state Current: 6 mA minimum
Off-state Current: 2.2 mA maximum
On response Time: 30 ms maximum
Off response Time: 45 ms maximum
Consumption: 90 mA (all inputs on) from 5 volt bus on backplan

Product Details

Input modules provide the interface between the PLC and external input devices such as proximity sensors, push buttons, switches and BCD thumbwheels. Output modules provide the interface between the PLC and external output devices such as contactors, interposing relays, BCD displays and indicator lamps. This module requires an AC power source, it cannot be used with a DC power source.

Product Description

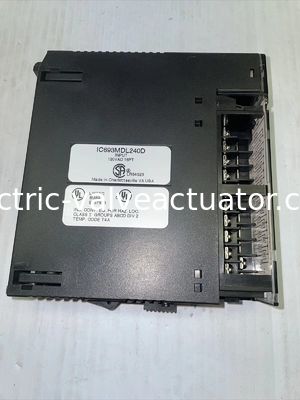

GE Fanuc Discrete input module for 90 - 30 series PLC offers 16 input points with one common power input terminal. It requires an AC power source for convenient operation. Module has LED indicators at the top to offer ON/OFF status of each point. Module has circuit wiring information on the surface towards the inside and circuit identification information on the outside surface. Module has a voltage rating of 120 VAC at 50/60 Hz, 0 - 132 VAC at 50/60 Hz, input current rating of 12 milli-Amps and a power rating of 90 milli-Amps at 5 VDC. It has a maximum ON response time of 30 milli-seconds and maximum OFF response time of 45 milli-seconds. Module is compatible with input devices such as pushbuttons, limit switches and electronic proximity switches. Input/output module provides the interface between the PLC and external input devices such as proximity sensors, push buttons, switches and BCD thumbwheels. It supports different voltage ranges, types, current capacity, isolation and response time to meet your application.
